3DEXPERIENCE Works SIMULATION.

Experience the new world of Simulation

Confidence in Design comes with FEA Simulation using 3DEXPERIENCE Works Simulation Software SIMULIA Works built on ABAQUS FEA – The Industry Standard for Finite Element Analysis. Testing concepts and ensuring they are feasible and meet desired objectives in terms of function and performance are critical to product success in the marketplace. Built on Cloud 3DEXPERIENCE Platform, Engineers can leverage the power of cloud computing to deliver reliable results faster and easier than ever before. Expensive Infrastructure to perform high performance computing is now not required. Dassault Systems 3DEXPERIENCE Platform ensures speed, accuracy and availability of data on demand at a fraction of the cost required to put up such an infrastructure and having an IT infrastructure for maintaining it.

3DEXPERIENCE Works SIMULATION



    • Simulate SOLIDWORKS DESIGNS On The Cloud for truly collaborative approach

    • Solve Static, Structural, Vibration, Dynamic and Non-Linear FE Simulations fast and easy

    • Role based Licensing for effective license usage

    • Finite Element Analysis from Simple Simulation to complex Non-linear Real-world Simulation

    • No infrastructure costs – Powered by Cloud based computing provided by Dassault Systemes

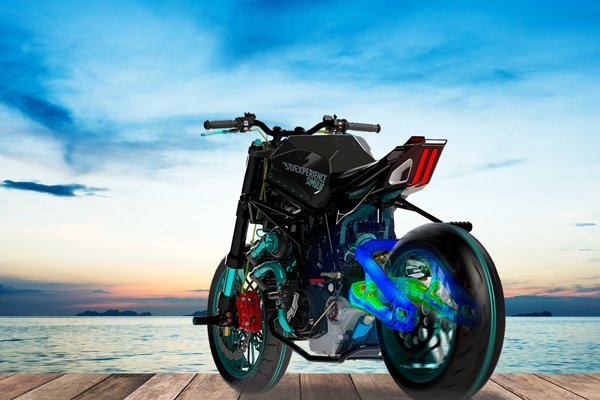

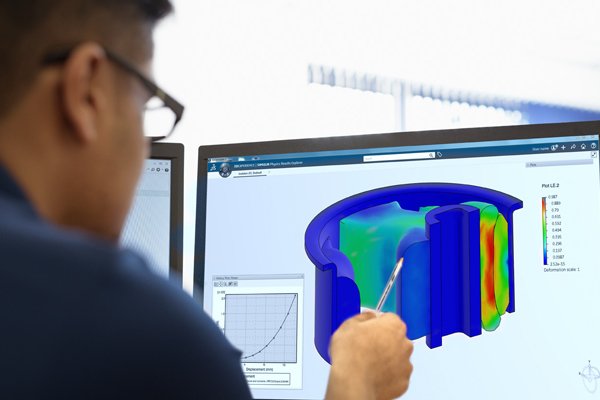

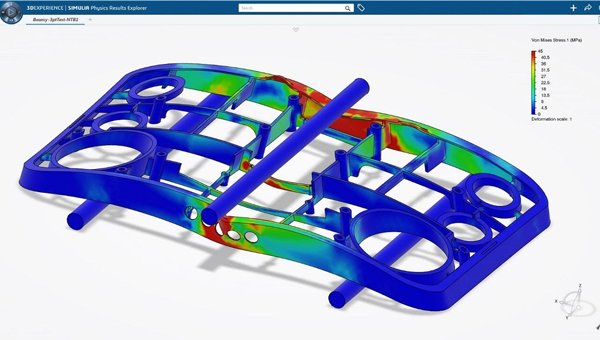

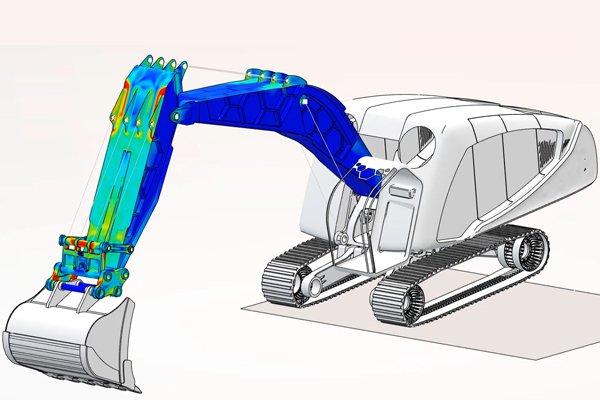

Structural Simulation

Structure portfolio of 3DEXPERIENCE SIMULIA works provides leading edge world class Abaqus Technology. Structural Simulation portfolio comprises of abilities from basic linear static to the more complex nonlinear implicit and explicit analysis. With the capabilities provided any degree of real-life problem can be solved efficiently.



    • Structural Designer – Intuitive and guided Simulation Solution for Designers

    • Structural Engineer – Product verification with Solid, Shell and Beam Meshes

    • Structural Performance Engineer – Linear and Non-Linear Static and Quasi-Static Simulations

    • Structural Mechanics Engineer – Linear and Highly advanced Non-linear simulation of High-speed events

    • Durability Performance Engineer & Durability Mech anics Engineer – Fatigue life prediction and ensure product durability

    • Simulation Collaborator – Review and Compare Simulations for informed decision making

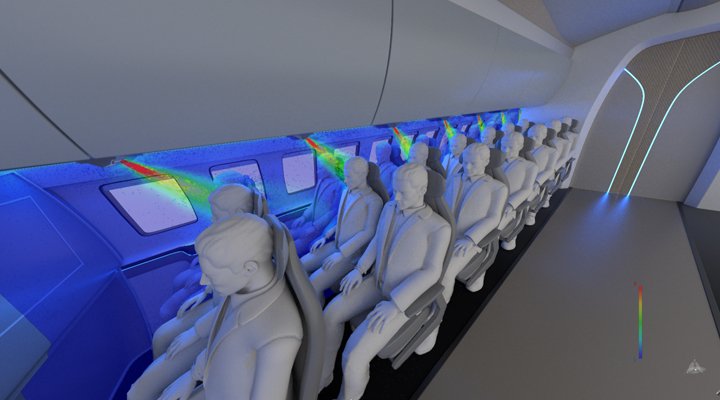

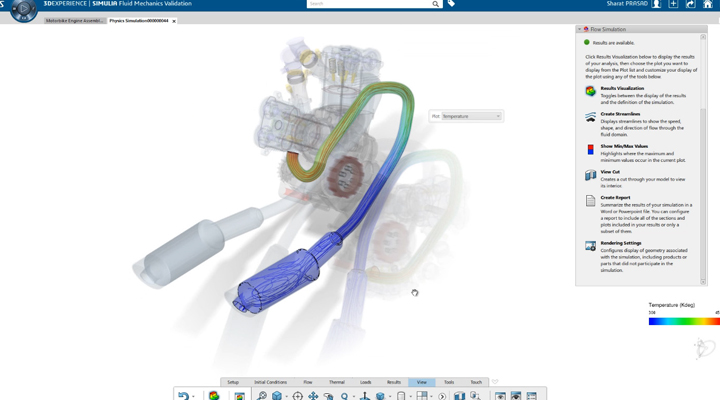

Fluid Simulation

3DEXPERIENCE Fluid capabilities includes extensive thermal modelling, Industry standard turbulence modelling, Fluid-Structure Interaction etc. With these capabilities any complexity of fluid problems can be addressed with efficient solution at ease.

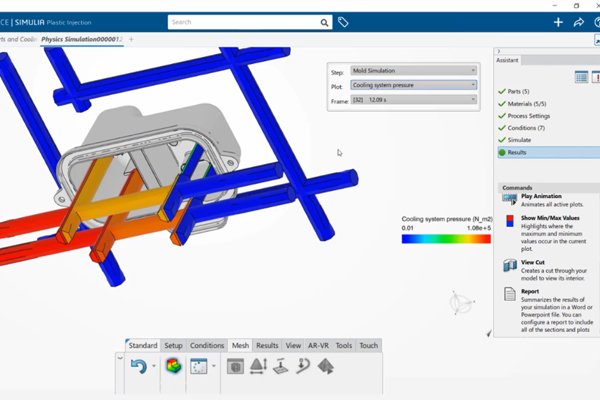

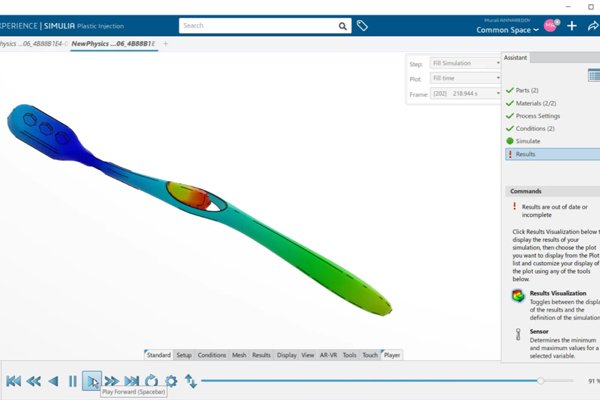

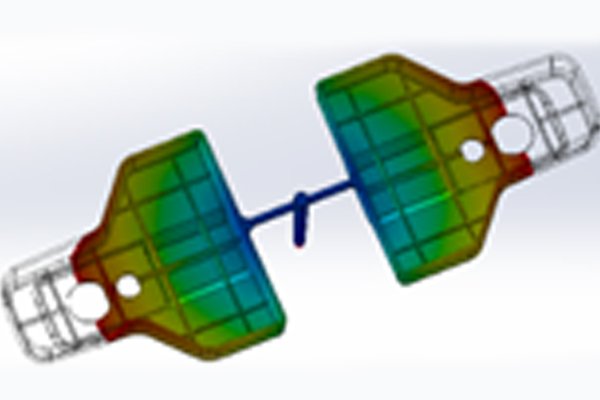

Plastic Simulation

3DEXPERIENCE Plastic Injection Engineer role have capabilities to address plastic defects associated with the development of any injection mould plastic products. It helps to reduce product development time and cost by providing collaborative env ironment to work on.

Electromagnetics

Electromagnetics capabilities provided by the 3DEXPERIENCE SIMULIA is powered by industry proven CST Studio Suite technology. Capabilities provided in the platform can be used to find and moderate for Electromagnetic Compatibility and Electromagnetic Interference

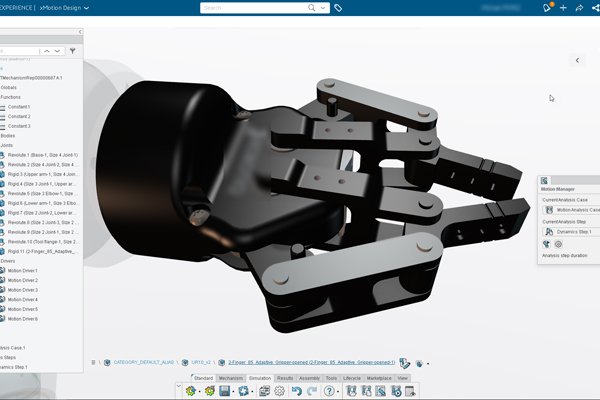

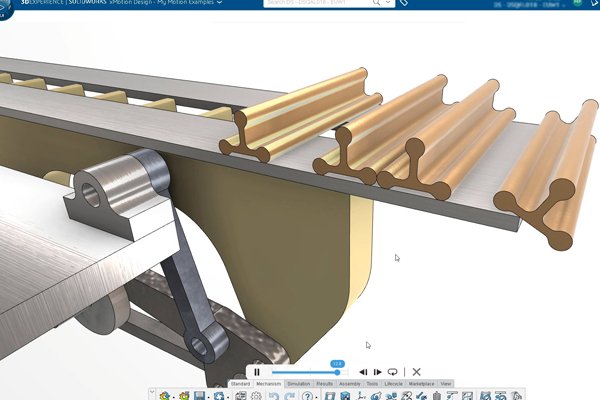

Motion

3DMotion creator role provides capabilities to check for more realistic design environment along with more intuitive, interactive and co-radially integrated motion for true life like experience. Product motion can be understood with realistic 3D animation, Kinematic and dynamic plots

Simulation Collaborator

Simulation Collaborator role enables collaborative decision making by 3DDashboard to review, compare and perform trade-offs between design variations. The Trade Off application accelerates the selection of best design and ranking designs based on requirements. Project stakeholders can review and collaborate.

Why choose EGS India for your Simulation needs?



    • FEA Simulation experience for over 33 years

    • Analysis to Test Correlation for Real-world conditions

    • Exhaustive Training on Finite Element Analysis procedures and techniques

    • Enabling development of IPR – a critical aspect for any company involved in New Product Development

    • Life based Designs instead of Factor of Safety based Designs for improved product performance at lower cost

    • Value Analysis and Value Engineering (VAVE) Experience, working with varied industries world-wide

SIMULATION Includes:

General FAQ for 3DEXPERIENCE SIMULIA - Structural Designer

The Structural Designer (trigram SRD) role provides product designers with easy-to-use,
simulation-based guidance to improve product structural and thermal performance while
reducing over-dimensioning and costly prototyping. It is part of the scalable
3DEXPERIENCE® Works Simulation portfolio using the proven Abaqus technology for
structural simulation. Structural Designer is on the collaborative 3DEXPERIENCE platform so
that teams can easily share information, review simulation data and make the right decisions
rapidly. With this role, product designers get the right tools to boost innovation and optimize
products early in the design process.

Structural Designer’s target audience is product designers who are comfortable with CAD
but not necessarily with simulation tools such as finite element analysis (FEA). Structural
Designer is easy to use and provides a guided process for setting up and running simulations.
Most simulations can be set up in Structural Designer in just a few minutes, so any
SOLIDWORKS® user can get the benefit of virtual testing.

Structural Designer provides product designers with easy-to-use, simulation-based guidance
to improve product structural and thermal performance while reducing over-dimensioning
and costly prototyping. It enables product designers to assess product performance early in
the conceptual design phase, compare and share design ideas, and validate requirements
during the detailed design phase

Structural Designer can help designers improve their design by quickly showing them where
the trouble spots are and whether or not their design will meet their company’s design
requirements. For example, a design might appear reasonable at first. But when designers
use Structural Designer to simulate its behavior under load, they might find that certain
regions are overloaded and should be modified. Likewise, they might find that certain regions
are underloaded and perhaps could be reduced in size with no harm to product performance.
Easy but powerful comparison tools are also available to decide which design works the best.
Structural Designer helps users in going further than legacy design ideas, challenging the
status quo and innovating during the product development process.

Structural Designer, like Collaborative Designer for SOLIDWORKS, is part of the
3DEXPERIENCE platform. Being part of the same platform provides a natural level of
integration between the apps. Users can design a product in SOLIDWORKS and seamlessly
go to Structural Designer to define the simulation aspects of their model. The design and
simulation models are associative. Changes in the CAD model can be updated by the user in
a single click when working with simulation, allowing for fast “what if” iterations.

Structural Designer runs simulations on the local machine or in the cloud. By default (with
embedded compute), the user can run simulations on four cores locally or in the cloud (one
simulation at a time). With SimUnits, multiple simulations can run on more cores (up to 144
cores) at the same time. Cloud computing offers more flexibility as more hardware resources
can be accessed while the user’s local computer is freed up for other important work.

Structural Designer uses Abaqus FEA solver technology, which is different from the solver
technology used by the existing SOLIDWORKS Simulation (Cosmos). Abaqus, developed by
the Dassault Systèmes SIMULIA® brand, is a worldwide leader in structural simulation. It is
a highly respected FEA solver in the simulation community, used by leading companies in
many industries (aerospace, automotive, high-tech and more) to perform virtual testing and
design certification. This high-end trusted technology is now available to all SOLIDWORKS
users.

Structural Designer delivers structural linear static, steady-state thermal, natural frequencies
and linear buckling simulation capabilities. It answers to the most common workflows any
designers would need to run for an accurate assessment of product performance.

Yes. Structural Designer can be used for simulation of individual components or assemblies
of many components, depending on needs. When working with assemblies, users have
several options for selecting the components to include, defining interactions and
connections between components for an accurate representation of the assembly.

Structural Designer focuses on providing guidance to product designers to help them improve
and validate their designs. With this focus, the simulation capabilities that are essential to
product designers have been selected. Users who need more advanced simulation
capabilities can use other structural simulation roles on the same platform, with the same
user interface and Abaqus technology.
These are the next levels:
- Structural Engineer for complete meshing and modeling as well as harmonic simulation
capabilities
- Structural Performance Engineer for nonlinear simulations involving complex materials,
complex contacts and large deformations
- Structural Mechanics Engineer for explicit dynamics, high-speed events, material
calibration, geometry preparation and simplification tools
Designers can open a Structural Designer model directly in one of the other roles and
consider more advanced simulation behaviors, if desired.

- It is cloud-based, which means that it offers natively lightweight results, collaboration, a
cloud computing option and the SaaS subscription model.
- It uses Abaqus technology, which is proven and trusted; users can scale up to more
powerful roles when needed.
- It offers the most common simulation procedures for designers: linear static, thermal,
frequency and buckling.

With Structural Designer, simulation data is stored along with the rest of the modeling data
on the 3DEXPERIENCE server. That means designers can access their simulation data from
anywhere at any time. It does not suffer the potential for loss associated with individuals
storing their simulation data locally or on laptops. It also better enables sharing of simulation
models with other users within the platform. Note that the user has an option to store the
simulation results locally.

Once a simulation is completed, a designer may be interested in communicating the model
and simulation results to others, inside and outside the company. Designers can share their
simulation findings on Swym communities so all project stakeholders can review the data
easily. They can share all their 3D simulation results via a web dashboard for unique
engineering collaboration.

Structural Designer provides cloud-based applications on 3DEXPERIENCE. Linear Structural
Validation is the main application for simulation setup, run and post-processing. Linear
Structural Validation is a client-installed application, which means that the user needs to
install it on his/her local machine in order to use it.

No. The targeted workflow should be one of these:
- SOLIDWORKS CAD models to transfer to Structural Designer using Collaborative Designer
for SOLIDWORKS, or
- 3D Creator xDesign models to transfer to Structural Designer using the Compass or 3D
Search.

Yes. Structural Designer includes applications to import and convert STEP and IGES formats.
It also supports CATIA® V5 with Collaborative Designer for CATIA (UE5).

General FAQ for 3DEXPERIENCE SIMULIA - Structural Performance Engineer

Structural Performance Engineer is a structural analysis role, with the market
leader Abaqus FEA technology, on the 3DEXPERIENCE platform. It is part of the
3DEXPERIENCE Works portfolio. It delivers a unique, easy and integrated
workflow, for all engineers, to expand and their SOLIDWORKS Simulation to a
more advanced simulation solution.

Structural Performance Engineer enables engineers to handle more complex
physics with confidence, more specifically when involving the following multiple
non-linear effects simultaneously:
• Contact interactions with friction,
• Large deformation / large strain,
• A wide range of material models,
• Higher model fidelity with advanced meshing (including quad and brick
elements),
• Fast post-processing and visualization of large models.
• Capture a precise load history of multiple and sequential load cases.

SIMULIA, a Dassault Systèmes brand, delivers realistic simulation applications
(such as Abaqus) that enable users to explore real-world behavior of product,
nature and life. SIMULIA applications accelerate the process of evaluating the
performance, reliability and safety of materials and products before committing
to physical prototypes.

Structural Performance Engineer is developed by SOLIDWORKS’ sister brand
SIMULIA within Dassault Systèmes. Being developed by SIMULIA means it uses
the market leader Abaqus FEA solver technology for the benefits of the
SOLIDWORKS users when it comes to multiple non-linear effects such as complex
contacts, large deformation/strain, large assemblies or hyper-elastic materials.

Structural Performance Engineer enables engineers to handle more complex
physics with confidence, more specifically when involving the following multiple
non-linear effects simultaneously. See “what do you mean by advanced
Simulation question?”.

Structural Performance Engineer is part of the 3DEXPERIENCE platform from
Dassault Systèmes; it enables remote cloud computing on multi-threads for your
larger simulations, storage and accessibility to the simulation model and results
from anywhere at any time. It provides collaboration tools for better sharing of
information among your project stakeholders.

Structural Performance Engineer is accessible directly from SOLIDWORKS and has
the capability to automatically transfer the SOLIDWORKS CAD model into
Structural Performance Engineer. It has also the capability to update automatically
the simulation model when the SOLIDWORKS CAD model changes.

Structural Performance Engineer gives you access to the industry leading Abaqus
FEA solver. It leverages the robust convergence capabilities of Abaqus to solve
complex problems that involve simultaneous severe nonlinearities, including
contact with significant friction, large deformation and complex materials. With
Structural Performance Engineer, you can efficiently capture preloading and a
precise load history by supporting multiple and sequential load step capability.
You can improve model fidelity and solution efficiency by utilizing quad and brick
meshes. You can access a wider range of material models. Structural Performance
Engineer being on the 3DEXPERIENCE, collaborate and make better decisions by
easily sharing results among all business and technical stakeholders.

Structural Performance Engineer runs simulations on the local machine or on the
cloud. You can use up to 8 cores to run a simulation locally or on the cloud
(included with the role). To expand the compute capacity for solving large models,
you can run your computation up to 144 cores on a local machine or on the cloud.
SimUnits are required to go beyond the compute capacity included with Structural
Performance Engineer.

Structural Performance Engineer uses the Abaqus FEA solver, which is different
from solver technology used by existing SOLIDWORKS Simulation (Cosmos).
Abaqus, developed by the Dassault Systèmes SIMULIA brand since 1978, is a
worldwide leader in structural simulation (especially non-linear analysis). Its
highly respected FEA solver is used by leading companies in many industries
(aerospace, automotive, high-tech, and more) to perform virtual testing and
design certification.

Structural Performance Engineer is a role, including a set of apps, to perform
structural linear and non-linear static, frequency, buckling, modal dynamic
response, and structural thermal simulation. It handles coupling of multiple nonlinearity effects: large amounts of contact, complex materials and scales to large
assemblies. It is ideal for solving problems such as gasket sealing (or any types of
sealing), soft materials such as rubber and much more.

Yes. There is the same Abaqus FEA Implicit and Implicit Dynamic solver. This way,
all the Engineers doing simulation, from the novice to the expert, use the same
industry leading FEA technology.

Yes. Structural Performance Engineer can be used for simulation of individual
components or assemblies of many components, depending on your needs. When
working with assemblies, you have several options for defining interactions
between components, including bonded connections, bolted connections, and
automatic contact (called General Contact) definition with significant friction.

Structural Mechanics Engineer (SSU) is the next role in 3DEXPERIENCE Works
moving up - it includes the Abaqus/Explicit solver for nonlinear dynamic like drop
test and impact simulations.

Structural Performance Engineer is complementary to SOLIDWORKS Simulation.
Its purpose is to solve more complex physics (such as highly non-linear analysis,
contact with friction, sequential loading, large strain/deformation, brick/quad
element meshing) and to provide a collaborative engineering platform.

With Structural Performance Engineer, simulation data is stored on your
3DEXPERIENCE tenant. That means that you and your colleagues can access your
simulation data, material, results from anywhere at any time.

For structural simulation, the materials in your model can include basic linear
elastic material behavior and/or more complex nonlinear material behavior. The
nonlinear behavior can be elastic-plastic properties that are perfect for modeling
metals and some plastics. The nonlinear behavior can also be defined using
“hyper-elastic” material behavior, which models rubber very well.

Once you complete a simulation, you may be interested in communicating the
model and simulation results to others both inside and outside your company. You
can share your simulation findings on Swym communities. Additionally,
Structural Performance Engineer gives you and your collaborators the flexibility to
visualize the simulation results in 3D from a simple web browser.

Please visit the VRC (Products > 3DEXPERIENCE > What’s New) and My Offer to
find more information about the latest 3DEXPERIENCE platform releases,
including recorded webinars, PowerPoint presentations and “What’s New”
documents. A public wiki is also available with “what’s new” information for each
new release and new functional delivery: wiki under the 3DEXPERIENCE platform
user’s community.
https://r1132100503382-eu1-3dswym.3dexperience.3ds.com/#community:4

All roles are available as a Quarterly Service Charge (QSC) or as a Yearly Service
Charge (YSC)

Comments are closed.
